June is the start of hurricane season and the time to check that your preparations for the safe and timely management of debris are ready. Debris removal and management are just two of the many competing priorities public agencies must manage during such events. It is important that disaster debris is properly managed so as to protect human health, comply with regulations, conserve disposal capacity, reduce injuries, and minimize or prevent environmental impacts.
Advance thought, planning, and coordination among individuals at various levels of government and the private sector with experience and expertise in waste management can successfully meet challenges from even the more severe storms the nation has experienced in recent years. Hammering out removal details with multiple jurisdictions and multiple contractors once the storm ends generates mountains of paperwork that must be submitted to the Federal Emergency Management Agency (FEMA) within six months. Not preparing for as many of the administrative aspects of a disaster as possible can have painful bottom-line consequences. These tedious, detail-oriented tasks conducted under great stress, can create the errors that federal agencies use to decline reimbursement applications.
Get started with these resources and recovery success studies; click to read, download, or share each:
Contact for assistance starting or refining your plan ahead of natural disasters.
Planning for Natural Disaster Debris – help for communities to develop or revise a disaster debris management plan. Many aspects of disaster debris planning can be relevant to communities demolishing abandoned residential buildings and remediating properties.
Guidance about Planning for Natural Disaster Debris – much of the construction or demolition waste can be recovered and recycled. SCS Engineers designs and builds these facilities so we can help locate the nearest C&D debris recyclers as part of your plan.
According to a recent article in APNews, U.S. Oil loaded its first shipment of 100,000 barrels of ethanol in April to ship out of the Port of Milwaukee. The distributor is a subsidiary of U.S. Venture, which distributes oil, ethanol, lubricants, tires and auto parts. The company has been shipping ethanol from the port of Green Bay for six years without incident.
The company filed an environmental response plan with the U.S. Coast Guard to help allay feels of pollution. The plan is comprehensive including controlling a potential spill, guarding water intake pipes and protecting wildlife in near-shore areas. “They have a very robust response plan,” said Lieutenant Commander Bryan Swintek of the U.S. Coast Guard in Milwaukee. “Clearly, they want to make sure they are operating in a safe manner.”
The safe transportation of ethanol helps support Wisconsin’s agricultural community, supports renewable fuels which play a major role in the new energy economy, and is done in a socially responsible, environmentally friendly way.
SCS Engineers provided the response plan mentioned in the article, which is not regulatory driven, but rather a proactive action driven by U.S. Oil. This type of response plan is called a Tactical Response Plan and provides an extra layer of spill preparedness. It’s a site-specific, emergency response and cleanup strategy that allows facilities to take action faster and quickly minimize the spread of a spill – and can help protect a facility’s reputation.

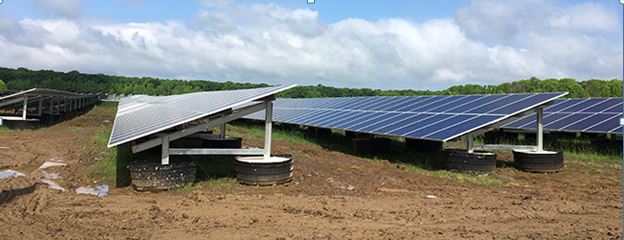

Recently, Mike Marks and Eric Peterson of SCS Engineers attended a ceremony at a closed BFI site, the South Brunswick Landfill. The landfill features solar panels to create renewable energy as part of normal operations. The renewable energy resource will run side by side with the leachate collection, cap maintenance, and landfill gas monitoring operations.
With the solar project nearly complete at the site the Governor of New Jersey decided it would be the perfect place to sign a major piece of green energy legislation. We agree!
Governor Murphy signed the Renewable Energy bill, which helps improve and expand New Jersey’s renewable energy programs; signed legislation establishing a Zero Emissions Certificate (ZEC) program to maintain New Jersey’s nuclear energy supply; and signed an executive order directing the development of an updated Energy Master Plan (EMP) for the state to achieve 100 percent clean energy by 2050.
In attendance were state politicians, union representatives, Republic Services’ Randy Deardorff, and a host of journalists. Thank you Governor, RSI, and our SCS colleagues in New Jersey.
Praise for New Jersey’s Clean Energy Economy advancements.
SCS Engineers welcomes Steven J. Liggins as Vice President and Controller. Steve, a certified public accountant, joins SCS with over ten years of experience in related financial positions with service driven companies. As the accounting officer at SCS, Steve is responsible for ensuring effective and efficient recording of accounting transactions, as well as monitoring adherence to established operating procedures and internal controls.
“Steve not only knows our business and our clients’ industries, but he brings valuable tax expertise, which is increasingly important,” stated Curtis Jang, CFO at SCS Engineers.
Steve has an MST in Taxation from Golden Gate University as well as a BA in Business Management and Accounting from Western Michigan University, Haworth College of Business.
Setting up a school zero waste program takes time, patience, excellent collaboration and communication, and a team that wants to achieve the same goal of zero waste. Tracie Bills recommends a realistic approach in her article. She provides examples and describes how a consulting firms, such as SCS Engineers, assist schools without materials management programs to launch zero waste programs.
Building a successful program does not happen overnight, but you can do it!
Tracie Onstad Bills is SCS Engineers Northern California Director of Sustainable Materials Management. She has over 20 years of materials management experience, including working for a hauler, a county government, and a nonprofit, and over 12 years of experience with materials management consulting firms. She has provided commercial sector materials flow assessments; organics processing research and analysis; waste characterization studies; and recycling, organics, and waste management technical assistance to government agencies, schools, multi-family dwellings, and businesses. Ms. Bills has an environmental science degree from San Jose State and is an instructor for the SWANA Zero Waste certification program.
CQA is essential for ensuring the proper construction of GCCS and meeting the intent of the design, and can help prevent safety mishaps. Even highly experienced design-build teams invest in expert CQA professionals to protect their capital investment, maintain maximum LFG capture through constructed GCCS, and keep operating and maintenance costs in line. It is critical for CQA person-nel to understand the overall intent of the design drawings, current field conditions, long-term conditions, and strict safety protocols. They must also have the expertise to respond to the questions contractors have during construction, especially regarding modifications to the design which will positively impact safety, long-term performance, and maintenance.
Part 1 of the 3-part article series in MSW Magazine discussed essential elements of the piping system in a landfill gas collection and control system (GCCS). The authors examine landfill GCCS design perspective and the benefits of designing landfill gas (LFG) headers outside of the waste boundary. In Part 2, we focus on construction quality assurance (CQA) services and outline the process of taking the design drawings through completion of the CQA report.
Read Part 2 here. Contains link to Part 1.
Learn how to minimize leachate and contact water management costs at coal combustion residual (CCR) landfills using good design, physical controls, and operational practices. Through the SCS use of case studies, you will learn how to assess leachate and contact water management issues and implement cost-saving techniques at your landfill.
Leachate management and contact water management at CCR landfills can be expensive, cause operational headaches, and divert valuable resources from other critical plant needs. The SCS presentation at USWAG will provide you with useful tools to ensure your landfill is designed and operated to cost-effectively reduce leachate and contact water and alleviate operator stress. We will present case studies that highlight how design features, physical controls, and operational practices have effectively decreased leachate and contact water management at CCR landfills.
SCS Engineers – Serving Utilities Nationwide
Unofficial English Translation
For Information Only
According to the letter on the Institute of Scrap Recycling Industries, Inc. (ISRI) website, all ports are required to strictly follow newly imposed national environmental protection standards, and inspection and quarantine procedures imposed from May 4, 2018 through June 4, 2018. During this period pre-shipment inspections on importation of wastes as raw materials (PSI) will be temporarily shut down.
For those shipments that have been inspected and obtained the certificates for wastes as
raw materials by CCIC’s Northern America Limited Company before and on May 3, 2018, they could continue to proceed with import custom applications, based on original rules.
Read the letter as posted: http://www.isri.org/docs/default-source/default-document-library/2018-05-03-gac-announces-ccic-na-one-month-suspension-(en).pdf
SCS Engineers along with our industry associations SWANA and NWRA will follow the news closely.
Deep injection wells (DIW) mean different things in different parts of the country. In the midwest DIWs have been used for decades to dispose of industrial wastewaters, mining effluent, and produced water from oil and gas production activities and are from 3,500 feet to more than 10,000 feet deep. In Florida, deep injection wells have been used since the 1960s; however, they are used to dispose of treated municipal wastewater, unrecyclable farm effluent, and in some cases landfill leachate. DIWs in Florida range from 1,000 feet to around 4,500 feet deep.
This is a two-part blog, the first part discussing what constitutes a DIW, their general features, their cost relative to other wastewater management alternatives, and the range of industrial wastewaters suitable and safe for disposal. The second part, covered in the next SCS Environment issue, will be on the challenges for deep well developers created by public and environmental organizations, and strategies to counter misinformation and means to obtain consensus from stakeholders.

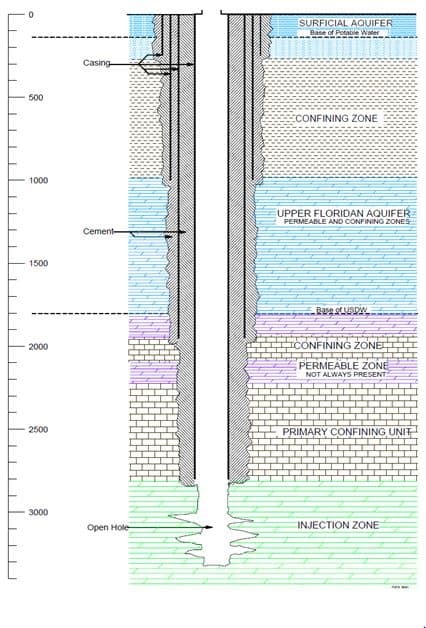

A DIW construction is a series of casings set in the ground where the initial casing starts out large and subsequent casings become smaller in diameter, progressively telescoping downward. Casing materials are typically steel alloys or fiberglass for better chemical resistance. As a casing is set and rock is drilled out, the next casing is set and cemented with a chemically resistant grout. The process continues with each progressively deeper casing. These redundant “seals” are what keep the injected liquid from escaping into the protected aquifers.
A DIW typically has three upper casings to protect the aquifers and isolate the wastewater to the desired disposal zone. The inner casing, called the injection tube, extends to the injection zone. Mechanical packers seal the space between the injection tube and the last casing with the annular. The resulting annular space is filled with a non-corrosive fluid. This fluid is put under pressure to demonstrate the continuous mechanical integrity of the well. The annulus is monitored for potential leaks, which would register as a loss in pressure and promptly stop the injection. Figure 1 is a simplified view of a DIW casing system used in south Florida.
Vertical turbine pumps working in conjunction with a holding tank, which is a used to smooth out the fluctuating flow of the wastewater feed pumps, propel the liquid down the well. As part of the permitting efforts, a chemical compatibility study is conducted to determine the level of pre-treatment if any to protect the well components and minimize downhole plugging. Municipal wastewater effluent is regulated differently and must receive at least secondary treatment before injection.
In the Midwest, DIWs are constructed to the same EPA criteria with a wide range of operating conditions. Some wells take fluid under gravity with no pumping, while others require higher pressure pumps that exceed 2,500 psi for injection. This blog focuses on wells used in Florida and typical fluid types and operational parameters.

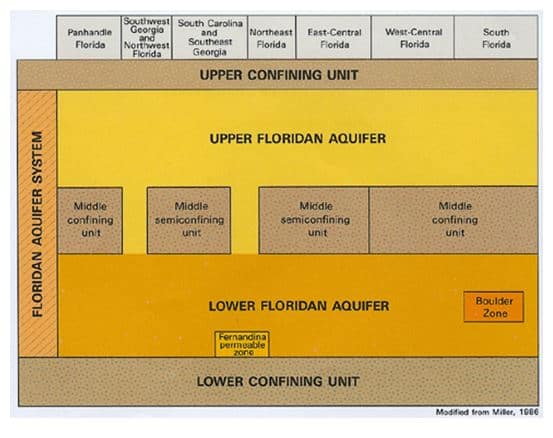

In central and south Florida the injection zone lies below the underground sources of drinking water (USDW) which is the depth at which water with a total dissolved solids (TDS) concentration exceeds 10,000 parts per million (ppm); or the “10,000 ppm line”. This water is considered to be unusable in the future as a drinking water source. In parts of Florida, the injection zone is dolomite overlain by a series of confining units up to 1,000 feet thick made up principally of limestone with permeability several orders of magnitude less than the injection zone. (1)
In central and south Florida the target injection interval is the “Boulder Zone,” reportedly named because drilling into the formation often broke off pieces of the formation and made drilling difficult. The Boulder Zone is also known as the lower portion of the Floridan Aquifer. Later down-hole imaging technologies revealed this zone to be characterized by highly fractured bedrock and large karstic caverns, and the ability to inject relatively high flow rates with relatively little backpressure. It is not uncommon for Florida DIWs to have well flow rates exceeding 15 million gallons per day (MGD) and backpressures ranging from 30 up to 100 pounds per square inch (psi).
The versatility of the DIW in Florida to accommodate numerous different types of wastewater is an advantage. DIWs are being used on a large variety of waste streams that continues to expand, including:
Any wastewater considered for disposal must be compatible with the target formation and the final casing material. Therefore, depending on the wastewater, it may be straightforward to use existing industry references to confirm compatibility. In some cases, laboratory bench tests may be necessary to confirm compatibility.
Compatibility also includes the potential for creating unwanted microbial growth and scale formation within the injection interval. Growth and scale can happen with effluent containing sulfur or ammonia, two food sources for microorganisms or wastewaters supersaturated with minerals. Unless planned for and evaluated properly, both of these items have the potential to grow and clog the formation around the well, significantly reducing flow and increasing back pressure. This can result in higher energy costs, regulatory action and significant, unplanned costs to rehabilitate the well.
Another significant aspect of municipal wastewater is that they are primarily composed of freshwater and thus when injected into the highly saline Boulder Zone or similar saline zones, will tend to have a vertical migration component because of the density difference and greater buoyancy than the target zone. A few wells have been taken out of service because the seals designed to prevent this migration failed and allowed wastewater to seep upwards into the USDW.
The US EPA Underground Injection Control (UIC) program is designed with one goal: protect the nation’s aquifers and the USDW. There are several protective measures in a DIW that are intended to meet this objective;
The U.S. EPA conducted a study in 1989-1991 of health risks comparing other common and proven disposal technologies to deep wells injecting hazardous waste. The U.S. EPA concluded that the current practice of deep well injection is both safe and effective, and poses an acceptably low risk to the environment. In 2000 and 2001 other studies by the University of Miami and U.S. EPA, respectively, suggested that injection wells had the least potential for impact on human health when compared to ocean outfalls and surface discharges(3). William R. Rish examined seven potential well failure scenarios to calculate the probabilistic risk of such events.These scenarios included four types of mechanical failures, two breaches of the confining units, and the accidental withdrawal of wastes. The overall risk was quantified by Rish as from 1 in 1 million (10-6) to 1 in 100 million (10-8) (4), which is no greater than the current EPA risk criteria for determining carcinogen risk. As a comparison, 10-6 is the same risk level used by EPA for contaminants in soil or groundwater that are a known carcinogen.
There are several studies in Florida conducted by researchers and practitioners in the deep injection well field to assess the actual potential for municipal wells to contaminate the USDW. The maximum identified risk associated with injection well disposal of wastewater in south Florida is the potential migration of wastewater to aquifer storage and recovery (ASR) wells in the vicinity of injection wells (Bloetscher and Englehardt 2003; Bloetscher et al. 2005).
In a 2007 study, 17 deep wells in south Florida, used for municipal waste disposal, that had known upward migration into the USDW, were evaluated to develop a computer model to simulate these phenomena and extrapolate vertical migration over longer time periods. The results indicated that the measured vertical hydraulic conductivities of the rock matrix would allow for only minimal vertical migration. Even where vertical migration was rapid, the documented transit times are likely long enough for the inactivation of pathogenic microorganisms (5).
In a 2005 study of 90 South Florida deep injection wells, the authors took actual field data and constructed a computer model calibrated to actual operating conditions. The intent was to model performance of two injection wells in the City of Hollywood, Florida that the authors were familiar with and to determine the likelihood of migration, and what might stop that migration. Density differential and diffusion were likely causes of any migration. No migration was noted in Hollywood’s wells. The preliminary results indicate that Class I wells can be modeled and that migration of injectate upward would be noticed relatively quickly (3).

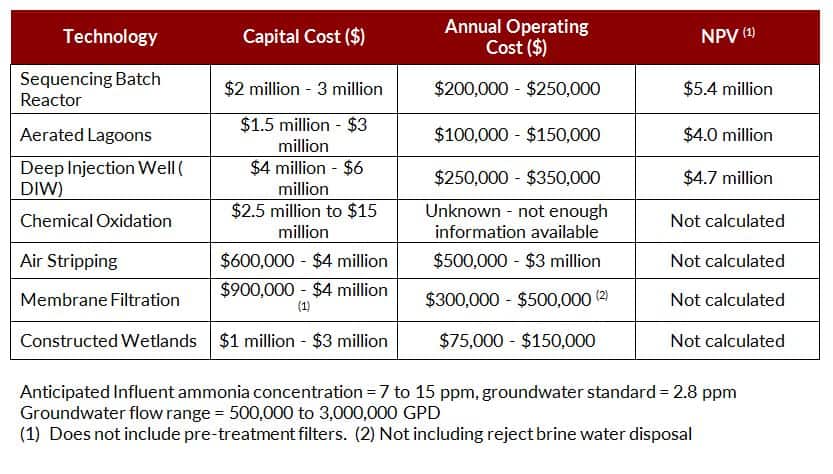

A deep injection well lifecycle cost compares favorably with other traditional waste treatment and disposal techniques. A life-cycle cost includes the capital cost and operating and maintenance costs for the useful life of the system. On a recent project, the wastewater for disposal was groundwater contaminated with ammonia nitrogen from a former landfill. The estimated groundwater recovery rate and the deep injection well disposal rate was calculated to be 1.2 million gallons per day (MGD). The proposed deep well was designed to have a final casing of 12-inch diameter, an 8-inch diameter injection tubing to a depth of 2,950 feet, and below that approximately 550 feet of open bore hole. The lifecycle cost estimate comparison to other viable technologies is shown in the Table below.
In this case, there were no projected revenues, so the alternative with the lowest net present value (NPV) would technically be the preferred alternative. Even though the aerated lagoon had the lowest NPV, it was ultimately judged too risky with a long break-in treatment period and significantly more space for treatment ponds needed.
The increasingly stringent surface water discharge standards are an ongoing challenge for industries generating a wastewater stream. DIW’s should be considered as a potentially viable option for long-term, cost-effective wastewater disposal, where a viable receiving geologic strata exists and when wastewater management alternatives are evaluated. In Florida, they currently provide an environmentally sound disposal option for many regions.
Within the SCS Engineers’ website, you will find the environmental services we offer and the business sectors where we offer our services. Each web page offers information to help you qualify SCS Engineers and SCS’s professionals by scientific and engineering discipline.
We provide direct access to our professional staff with whom you may confidentially discuss a particular environmental challenge or goal. Our professional staff work in partnership with our clients as teams. We are located according to our knowledge of regional and local geography, regulatory policies and industrial or scientific specialty.
Sometimes geosynthetic material specifications for a specific project, i.e., lining system or final cover system, is a performance-based specification which does not specify the type of product for use in construction. What does the engineer need to do when the selected contractor submits a product for approval in accordance with a performance-based specification? What should the engineer do when the owner purchases the material and identifies a product for use based on the performance-based specification?
Specifications that SCS has prepared are performance-based and include a qualifying procedure whether the product is introduced by a contractor or owner. This qualifying procedure is specifically left to the engineer to carry out by laboratory testing of typical samples of the specific product for use in construction. Typical reported values by the manufacturer or test results submitted by the contractor or owner are not acceptable under these procedures. Since the engineer is taking the liability of accepting a specific type of product for his or her project, the engineer should have the right to perform laboratory testing before the product is approved for use in the project, that only makes sense in the world of taking liabilities!
The testing performed by the engineer for qualifying a product do not count toward conformance testing of materials delivered to the site. The qualifying procedures are solely for accepting a certain type of product to be used in the project, but the specific rolls of pre-qualified product manufactured for use in engineer’s project must go through the required conformance testing specified in the specifications before use in the project.
The process of qualifying a product, ordering the qualified product, and performing conformance testing on the pre-qualified materials takes time. Engineers need to consider the amount of time necessary for the involved stages of approval into the construction schedule. If using material purchased by the owner, the owner needs to keep the timeline in mind to allow the engineer to carry out all necessary testing for the approvals to be in place before construction begins.
Repeating the qualifying procedure for a product from one project to the next depends on how the performance-based specification is written. Sometimes, the engineer accepts a product that was qualified for use in a prior project as long as the product has not changed since last used in accordance with statements by the manufacturer. If the performance-based specification includes such options, SCS highly recommends identifying the period between a prior project and the next project in the specification. In some cases, this means the product must go through a qualifying process even if it has not changed for many years but the previous set of qualifying data is older than a certain number of years. The period is based on the engineer’s judgment, but most professionals normally use five years in their specifications. During a five-year period, if the product changes or there are indications that the product might have changed due to recorded changes in certain reported values by the manufacturer, the qualifying process must be followed irrespective of the number of years passed since a recent past project to maintain quality and minimize risk.
Questions? Contact the author, Ali Khatami.
