Deep injection wells (DIW) mean different things in different parts of the country.  In the midwest DIWs have been used for decades to dispose of industrial wastewaters, mining effluent, and produced water from oil and gas production activities and are from 3,500 feet to more than 10,000 feet deep.  In Florida, deep injection wells  have been used since the 1960s; however, they are used to dispose of treated municipal wastewater, unrecyclable farm effluent, and in some cases landfill leachate.  DIWs in Florida range from 1,000 feet to around 4,500 feet deep.

This is a two-part blog, the first part discussing what constitutes a DIW, their general features, their cost relative to other wastewater management alternatives, and the range of industrial wastewaters suitable and safe for disposal.  The second part, covered in the next SCS Environment issue, will be on the challenges for deep well developers created by public and environmental organizations, and strategies to counter misinformation and means to obtain consensus from stakeholders.

Deep Well Features

A DIW construction is a series of casings set in the ground where the initial casing starts out large and subsequent casings become smaller in diameter, progressively telescoping downward.  Casing materials are typically steel alloys or fiberglass for better chemical resistance.  As a casing is set and rock is drilled out, the next casing is set and cemented with a chemically resistant grout. The process continues with each progressively deeper casing.  These redundant “seals” are what keep the injected liquid from escaping into the protected aquifers.

A DIW typically has three upper casings to protect the aquifers and isolate the wastewater to the desired disposal zone.  The inner casing, called the injection tube, extends to the injection zone.  Mechanical packers seal the space between the injection tube and the last casing with the annular. The resulting annular space is filled with a non-corrosive fluid.  This fluid is put under pressure to demonstrate the continuous mechanical integrity of the well.  The annulus is monitored for potential leaks, which would register as a loss in pressure and promptly stop the injection.  Figure 1 is a simplified view of a DIW casing system used in south Florida.

Vertical turbine pumps working in conjunction with a holding tank, which is a used to smooth out the fluctuating flow of the wastewater feed pumps, propel the liquid down the well.  As part of the permitting efforts, a chemical compatibility study is conducted to determine the level of pre-treatment if any to protect the well components and minimize downhole plugging. Municipal wastewater effluent is regulated differently and must receive at least secondary treatment before injection.

disposal of wastewater

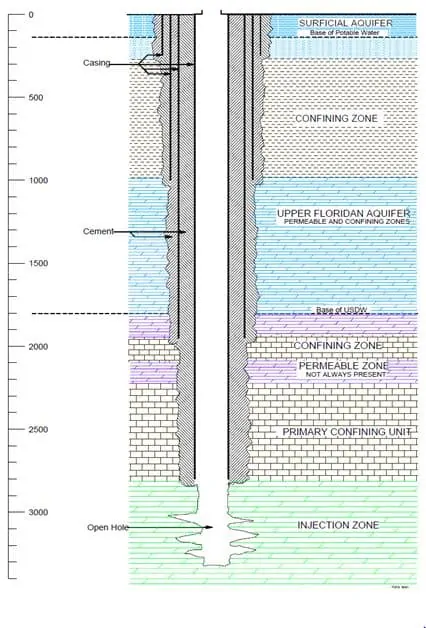

Typical Casing System Used in South Florida for Deep Injection Wells



In the Midwest, DIWs are constructed to the same EPA criteria with a wide range of operating conditions.  Some wells take fluid under gravity with no pumping, while others require higher pressure pumps that exceed 2,500 psi for injection. This blog focuses on wells used in Florida and typical fluid types and operational parameters.

Hydro-Geological Character of the Region

In central and south Florida the injection zone lies below the underground sources of drinking water (USDW) which is the depth at which water with a total dissolved solids (TDS) concentration exceeds 10,000 parts per million (ppm); or the “10,000 ppm line”.  This water is considered to be unusable in the future as a drinking water source.  In parts of Florida, the injection zone is dolomite overlain by a series of confining units up to 1,000 feet thick made up principally of limestone with permeability several orders of magnitude less than the injection zone. (1)

In central and south Florida the target injection interval is the “Boulder Zone,” reportedly named because drilling into the formation often broke off pieces of the formation and made drilling difficult.  The Boulder Zone is also known as the lower portion of the Floridan Aquifer.  Later down-hole imaging technologies revealed this zone to be characterized by highly fractured bedrock and large karstic caverns, and the ability to inject relatively high flow rates with relatively little backpressure.  It is not uncommon for Florida DIWs to have well flow rates exceeding 15 million gallons per day (MGD) and backpressures ranging from 30 up to 100 pounds per square inch (psi).

wastewater disposal wells

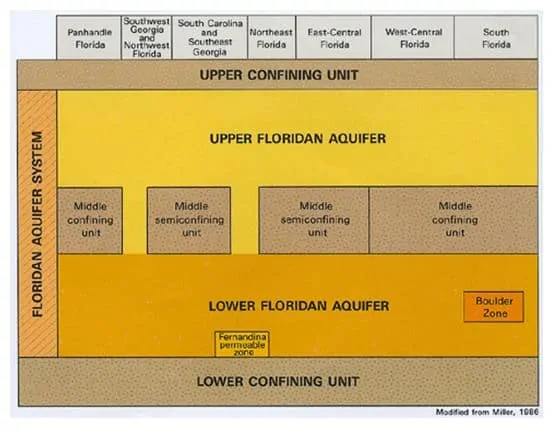

Generalized Section of Florida Geology and Major Aquifers



Wastewater Compatibility

The versatility of the DIW in Florida to accommodate numerous different types of wastewater is an advantage.  DIWs are being used on a large variety of waste streams that continues to expand, including:

  • Treated Municipal wastewater
  • Landfill leachate
  • Contaminated Groundwater (e., ammonia – impacted)
  • Reverse osmosis treatment concentrate
  • Fish farm wastewater
  • Various industrial wastewaters

Any wastewater considered for disposal must be compatible with the target formation and the final casing material.  Therefore, depending on the wastewater, it may be straightforward to use existing industry references to confirm compatibility.  In some cases, laboratory bench tests may be necessary to confirm compatibility.

Compatibility also includes the potential for creating unwanted microbial growth and scale formation within the injection interval.  Growth and scale can happen with effluent containing sulfur or ammonia, two food sources for microorganisms or wastewaters supersaturated with minerals.  Unless planned for and evaluated properly, both of these items have the potential to grow and clog the formation around the well, significantly reducing flow and increasing back pressure.  This can result in higher energy costs, regulatory action and significant, unplanned costs to rehabilitate the well.

Another significant aspect of municipal wastewater is that they are primarily composed of freshwater and thus when injected into the highly saline Boulder Zone or similar saline zones, will tend to have a vertical migration component because of the density difference and greater buoyancy than the target zone.  A few wells have been taken out of service because the seals designed to prevent this migration failed and allowed wastewater to seep upwards into the USDW.



Protection of Drinking Water

The US EPA Underground Injection Control (UIC) program is designed with one goal: protect the nation’s aquifers and the USDW.  There are several protective measures in a DIW that are intended to meet this objective;

  • Proper design of the well casings and injection tubing for strength and chemical compatibility. These components are recertified every five years with a robust mechanical integrity testing program.
  • Demonstration that there is a confining zone of low permeability rocks to prevent upward migration of injectate. This demonstration includes documenting that any other nearby wells or borings drilled into the confining zone have been properly completed or plugged to prevent a short circuit contamination pathway.
  • Testing the injection interval to prove it can accept the fluids at the proposed rates and pressures.
  • Continuous monitoring of the well pressures and flows that include the well annulus monitoring.
  • Frequent sampling and reporting of the injected fluid.
  • Financial assurance via various means to plug and abandon the well if required.



Operational Considerations with Deep Injection Wells

The U.S. EPA conducted a study in 1989-1991 of health risks comparing other common and proven disposal technologies to deep wells injecting hazardous waste.  The U.S. EPA concluded that the current practice of deep well injection is both safe and effective, and poses an acceptably low risk to the environment. In 2000 and 2001 other studies by the University of Miami and U.S. EPA, respectively, suggested that injection wells had the least potential for impact on human health when compared to ocean outfalls and surface discharges(3).  William R. Rish examined seven potential well failure scenarios to calculate the probabilistic risk of such events.These scenarios included four types of mechanical failures, two breaches of the confining units, and the accidental withdrawal of wastes.  The overall risk was quantified by Rish as from 1 in 1 million (10-6) to 1 in 100 million (10-8) (4), which is no greater than the current EPA risk criteria for determining carcinogen risk. As a comparison, 10-6 is the same risk level used by EPA for contaminants in soil or groundwater that are a known carcinogen.

There are several studies in Florida conducted by researchers and practitioners in the deep injection well field to assess the actual potential for municipal wells to contaminate the USDW.  The maximum identified risk associated with injection well disposal of wastewater in south Florida is the potential migration of wastewater to aquifer storage and recovery (ASR) wells in the vicinity of injection wells (Bloetscher and Englehardt 2003; Bloetscher et al. 2005).

In a 2007 study, 17 deep wells in south Florida, used for municipal waste disposal, that had known upward migration into the USDW, were evaluated to develop a computer model to simulate these phenomena and extrapolate vertical migration over longer time periods. The results indicated that the measured vertical hydraulic conductivities of the rock matrix would allow for only minimal vertical migration. Even where vertical migration was rapid, the documented transit times are likely long enough for the inactivation of pathogenic microorganisms (5).

In a 2005 study of 90 South Florida deep injection wells, the authors took actual field data and constructed a computer model calibrated to actual operating conditions. The intent was to model performance of two injection wells in the City of Hollywood, Florida that the authors were familiar with and to determine the likelihood of migration, and what might stop that migration.  Density differential and diffusion were likely causes of any migration.  No migration was noted in Hollywood’s wells. The preliminary results indicate that Class I wells can be modeled and that migration of injectate upward would be noticed relatively quickly (3).



Treatment Cost Comparison

A deep injection well lifecycle cost compares favorably with other traditional waste treatment and disposal techniques.  A life-cycle cost includes the capital cost and operating and maintenance costs for the useful life of the system.  On a recent project, the wastewater for disposal was groundwater contaminated with ammonia nitrogen from a former landfill.  The estimated groundwater recovery rate and the deep injection well disposal rate was calculated to be 1.2 million gallons per day (MGD).  The proposed deep well was designed to have a final casing of 12-inch diameter, an 8-inch diameter injection tubing to a depth of 2,950 feet, and below that approximately 550 feet of open bore hole.  The lifecycle cost estimate comparison to other viable technologies is shown in the Table below.

waste water injection

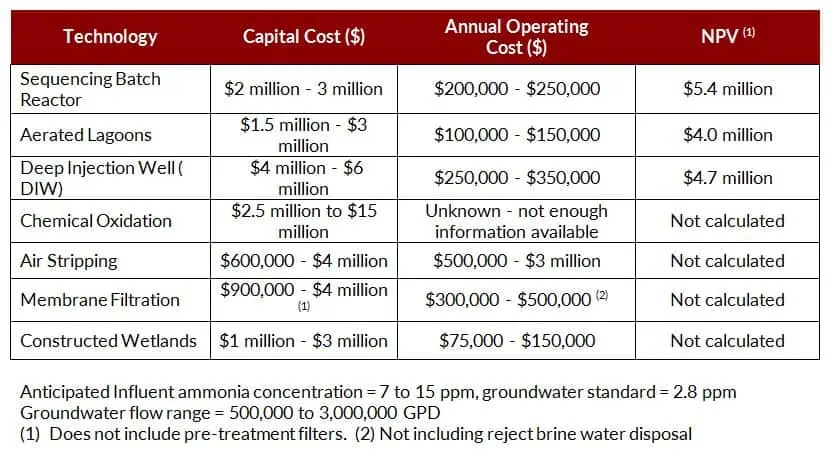

Life Cycle Cost Estimate for Water Treatment Technologies



In this case, there were no projected revenues, so the alternative with the lowest net present value (NPV) would technically be the preferred alternative.  Even though the aerated lagoon had the lowest NPV, it was ultimately judged too risky with a long break-in treatment period and significantly more space for treatment ponds needed.



Summary

The increasingly stringent surface water discharge standards are an ongoing challenge for industries generating a wastewater stream.  DIW’s should be considered as a potentially viable option for long-term, cost-effective wastewater disposal, where a viable receiving geologic strata exists and when wastewater management alternatives are evaluated. In Florida, they currently provide an environmentally sound disposal option for many regions.
